AWWA C515 Gate Valve with Drain & Vent Design

Features & Benefits of Drain & Vent Design

Designated with series number of MT-57-D23, the AWWA C515 gate valve with drain & vent design is a non-rising stem (NRS) resilient seated gate valve made from ductile iron.

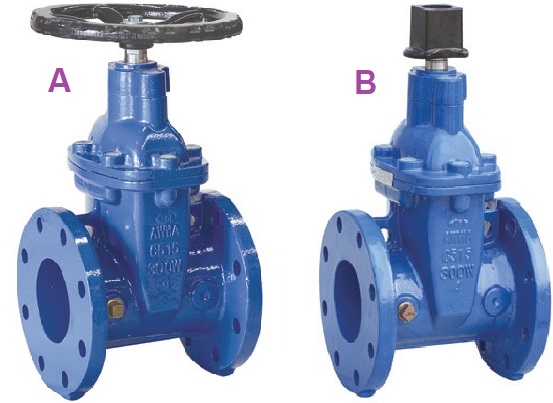

The draining and venting design is achieved by a brass plug and a threaded hole drilled in the middle of the valve body. This brass plug/ threaded hole plays an important role in the use of the gate valve: (1) It actually serves as a sealed inspection port. When it is necessary to inspect, maintain, or clean the interior of the valve, this plug can be removed, allowing access to the internal parts of the valve through the threaded hole for necessary operations. Using brass for the plug provides excellent corrosion resistance and sealing performance, effectively preventing external contaminants from entering the valve body and also preventing internal fluid from leaking. (2) During the operation of the AWWA C515 gate valve, small amounts of gas or residual impurities may be produced, which can accumulate in the cavity of the valve body and affect its normal operation. Through this drain & vent plug (threaded hole), these impurities and gases can be periodically discharged, keeping the inside of the valve clean and smooth. Thus, this design allows maintenance to be performed without dismantling the entire valve, reducing downtime and maintenance costs.

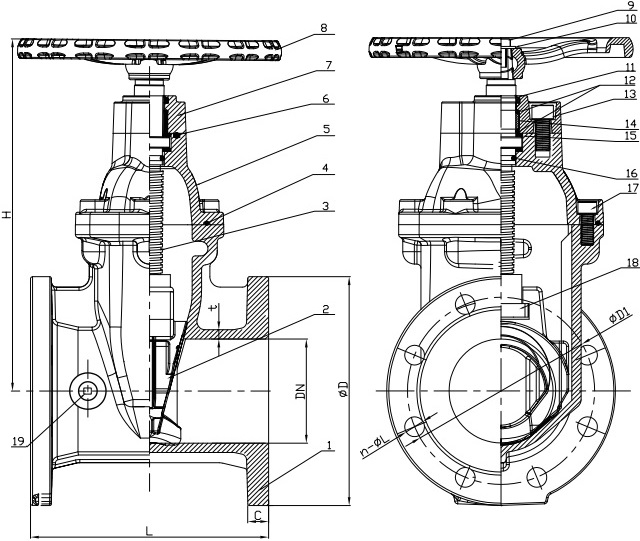

Drawing, Parts & Materials

Part No.	Name	Specification
1	Body	ASTM A536 65-45-12
2	Wedge	ASTM A536 65-45-12 + EPDM
3	Stem	AISI 420, AISI 431 SS 304, SS 316 Al-Bronze
4	Bonnet Gasket	EPDM, NBR
5	Bonnet	ASTM A536 65-45-12
6	O-Ring	EPDM, NBR
7	Gland	ASTM A536 65-45-12
8	Handwheel	ASTM A536 65-45-12
9	Bolt	CS+zinc plated SS 304, SS 316
10	Washer	CS+zinc plated SS 304, SS 316
11	Ring Wiper	EPDM, NBR
12	O-Ring	EPDM, NBR
13	Bolt	CS+zinc plated SS 304, SS 316
14	Axis Guide	Brass Hpb59-1
15	Washer	Brass Hpb59-1
16	O-Ring	EPDM, NBR
17	Bolt	CS+zinc plated SS 304, SS 316
18	Stem Nut	Brass
19	Plug	Brass

*Material specification for each part of the AWWA C515 gate valve with series number of MT-57-D23.

Dimensions

Size	L mm	H mm	C mm
2"	178	254	16
2.5"	190	275	16.7
3"	203	301	19.1
4"	229	355	19.1
5"	254	393	19.1
6"	267	448	19.1
8"	292	548	22.2
10"	330	626	23.8
12"	356	722	25.4
14"	381	917	25.4
16"	406	917	25.4
18"	432	1108	25.4
20"	457	1130	28.6
24"	508	1311	30.1

*L: face-to-face dimensions; *H: height of the gate valve; *C: flange thickness. The flange thickness shall comply with Table 4 of AWWA C515, which is the minimum thickness for ductile iron connecting end flanges.

Size	D mm	D1 mm	n x ΦL mm
2"	152	120.7	4-Φ19.1
2.5"	178	139.7	4-Φ19.1
3"	191	152.4	4-Φ19.1
4"	229	190.5	8-Φ19.1
5"	254	215.9	4-Φ22.2
6"	279	241.3	4-Φ22.2
8"	343	298.5	4-Φ22.2
10"	405	362.0	12-Φ25.4
12"	483	431.8	12-Φ25.4
14"	533	476.3	12-Φ28.6
16"	597	539.8	16-Φ28.6
18"	635	577.9	16-Φ31.8
20"	699	635.0	20-Φ28.6
24"	813	749.3	20-Φ34.9

*Drilling dimensions of the flanged ends of AWWA C515 gate valves, D – outside diameter of flange, D1 – bolt circle diameter, n – number of bolt holes, ΦL – diameter of bolt hole. The flange dimensions shall be furnished in accordance with ASME B16.1 Class 125.
