» Valves & Pumps » AWWA C515 Gear Operated Gate Valves

AWWA C515 Gear Operated Gate Valves

June 4, 2024

SJZ Metalsin supplies large diameter gear operated NRS resilient-seated gate valves in accordance AWWA C515. These valves are furnished with flanged ends, machined in accordance with the dimensions of a series of international standards such as ASME B16.1 Class 125, ASME B16.47 Class 150, AWWA C207, EN1092-2 PN10/PN16, BS 4504 PN10/PN16, etc. Both the body and bonnet are made from ductile iron in reduced wall, as well as the wedged disc, which is fully encapsulated by EPDM rubber. They usually have a large diameter (over 24″) and are available in sizes up to 72″ (DN1800). Both the interior and exterior surfaces of the gate valve are FBE coated in accordance with AWWA C550, offering superior corrosion resistance and improved abrasion resistance, promoting efficient flow characteristics and overall performance.

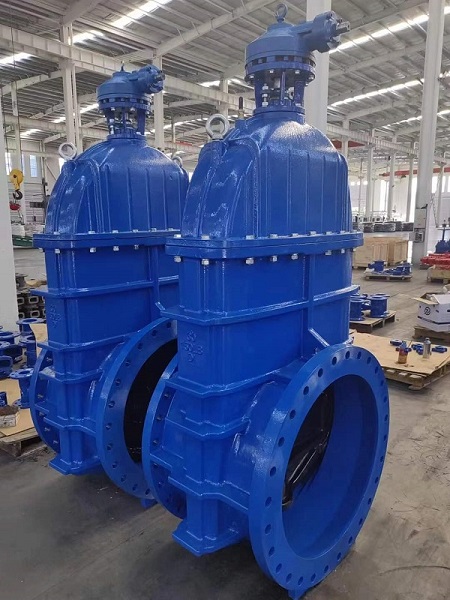

AWWA C515 NRS gear operated gate valves.

AWWA C515 NRS resilient seated bevel-gear operated gate valves, 30″ Class 150(ASME B16.47 Series A) FF.

AWWA C515 large-diameter gear operated gate valves are usually bevel gear operated: A bevel gear operator consists of a gear assembly with two intersecting bevel gears, typically at a right angle, which convert the rotational motion of a handwheel into the linear motion needed to operate the valve stem. The input shaft, connected to the handwheel, rotates the first bevel gear, which meshes with the second gear on the output shaft, thereby moving the valve gate up or down. This assembly is housed in a protective casing that often includes lubrication to reduce friction and wear, ensuring smooth operation and durability. The advantages of using a bevel gear operator include efficient torque conversion, ease of operation, and durability. This mechanism provides smooth and precise valve movement, reduces the manual effort required, and ensures reliable performance even in high-pressure applications. Additionally, its robust design minimizes wear and maintenance needs, contributing to long-term operational efficiency.

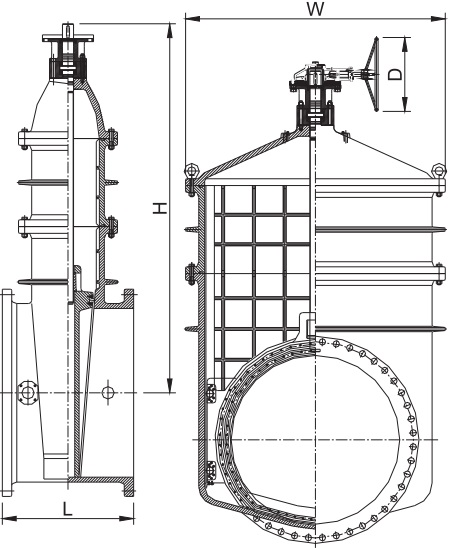

Drawing of AWWA C515 bevel gear operated gate valves.

G.A. drawings for large-diameter AWWA C515 NRS resilient seated gate valves, bevel gear operated, flanged ends, 250 psi or PN 16.

The material specification for each valve parts are generally as follow: (1) Body, Bonnet & Gearbox: ductile iron, ASTM A536 Gr. 65-45.12; (2) Wedge: ductile iron + EPDM fully encapsulated; (3) Stem: stainless steel 420, 431, 304, 316; (4) Gasket: EPDM or NBR rubber; (5) Bearing: steel; (6) Bolts: ASTM A307 Gr.B; (7) Wedge Nut: Bronze ASTM B148 C95200; (8) O-Ring: EPDM or NBR. (9) Bushing: Brass ASTM B16 C36000.

SizeL
mm
H
mm
W
mm
30"61017781213
36"71120571378
42"91421971695
48"111824381918
54"106730202110
60"111835252135
72"121939502660
*Structural dimensions for AWWA C515 NRS gear operated gate valves in sizes 30″ through 72″. L: face-to-face dimensions; H: height of the valve; W: width of the valve. The handwheel diameter D is 610 mm.
