AWWA C515 Resilient Seated Gate Valves | NRS & Flanged

May 19, 2024

SJZ Metalsin supplies the AWWA C515 resilient seated gate valves with non-rising stem design and flanged end connections. Furnished with ductile iron body and bonnet, these valves are widely used for water supply service. Featuring reduced-wall thickness for enhanced performance without compromising structural integrity, AWWA C515 gate valves are lighter for easier transportation and installation.

Resilient Seated Design

AWWA C515 gate valves features for its resilient seated design, in which the metallic wedge (gate) is fully encapsulated in vulcanized EPDM or NBR rubber. The encapsulated wedge is in direct contact with the seating surface of the valve passage and it does not require a groove at the bottom of the body chamber. This design is less prone to medium buildup, ensuring better flow characteristics of the full port design.

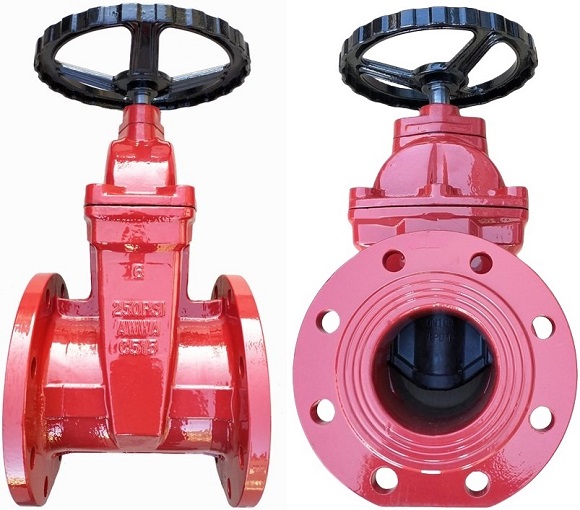

AWWA C515 flanged NRS gate valves.

The picture of AWWA C515 resilient seated gate valves with non-rising stem (NRS) and flanged end connections. 6″ 250 psi, handwheel operated.

The resilient seated design of the AWWA C515 gate valve also offers several key advantages: it ensures tight sealing, minimizes leakage, and enables smooth operation with minimal torque. Additionally, the rubber material provides excellent corrosion resistance, making these valves suitable for diverse water conditions while requiring minimal maintenance due to their durable construction. The combination of a ductile iron body and resilient wedge ensures a long service life, even in demanding applications, and the low torque requirement contributes to energy savings during valve operation, particularly beneficial in large-diameter valves used in water distribution networks.

Non-Rising Stem (NRS)

The non-rising stem design of the AWWA C515 gate valve is a notable feature that enhances its functionality and durability in water supply systems. In this design, the stem of the valve remains stationary during operation, while the gate moves vertically to control the flow of water. This non-rising stem design offers several advantages. Firstly, it allows for compact installation, making it suitable for applications with limited space. Additionally, the stationary stem reduces the risk of damage or interference, ensuring smooth operation even in challenging environments. Furthermore, the non-rising stem design simplifies maintenance procedures, as it eliminates the need for additional clearance above the valve for stem movement.

Flanged Ends

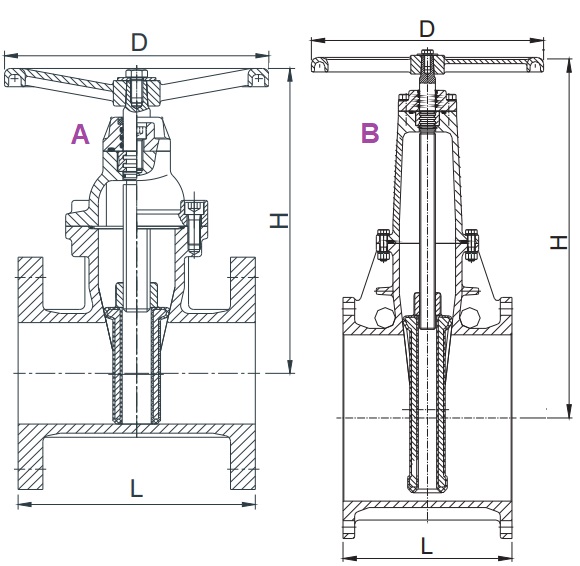

Drawings for AWWA C515 NRS flanged resilient seated gate valves.

Typical drawings of AWWA C515 NRS resilient seated gate valves with flanged ends: A – for sizes 2″~12″; B – for sizes 14″~30″.

The AWWA C515 NRS resilient seated gate valve with flanged ends is designed to provide secure and leak-free connections in water supply systems. Flanged ends usually feature raised faces with bolt holes, allowing for easy alignment and attachment to piping systems using bolts and nuts. This design ensures a tight and reliable seal, minimizing the risk of leakage and ensuring efficient flow control. The flanged ends also facilitate quick installation and removal of the valve, making maintenance and repairs more convenient. The thickness and drilling dimensions of the body flange shall conform to ASME B16.1 Class 125, AWWA C207, or AWWA C110/A21.10. When modified by the purchaser, these dimensions may be furnished in accordance with other standards such as ASME B16.5 Class 150, EN1092-1 PN10/ PN16/ PN25, BS 4504, BS 10, etc.

Material Selection & Structural Dimensions

Part NameMaterial Specification
BodyASTM A536 Gr. 65-45-12
BonnetASTM A536 Gr. 65-45-12
WedgeASTM A536 Gr. 65-45-12
+EPDM
Snap RingASTM B148 C95200
Stem NutASTM B148 C95200
StemASTM A276
TP304, TP316
O RingNBR
GasketEPDM
ASTM D2000
GlandASTM A536 Gr. 65-45-12
Bolts & NutsCS + Zinc
SS304, SS316
HandwheelASTM A536 Gr. 65-45-12
*Material selection of main parts of the valve.

SizeL
mm
H
mm
D
mm
2"178240175
2-1/2"191255175
3"203285255
4"229305255
5"254380305
6"267417305
8"292525355
10"330621405
12"356711405
14"381905558
16"406980558
18"4321115610
20"4571190610
24"5081340762
30"6101730-
*Structural dimensions of AWWA C515 flanged NRS resilient seated gate valves: L – face-to-face dimensions; H: height of the valve; D: diameter of the handwheel.
