BS 5150 Flanged Cast Iron Gate Valves

April 24, 2024

Design Characteristics & Advantages

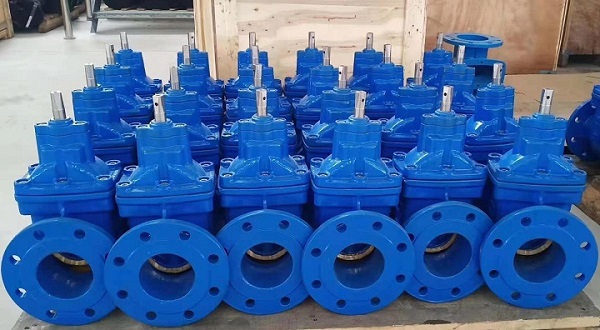

BS 5150 flanged cast iron gate valves, non rising stem, metal seated.

BS 5150 flanged ductile iron gate valves, 6″ PN16, non-rising stem, metal seated, supplied to Dammam, Saudi Arabia.

The BS 5150 flanged cast iron gate valve is a type of gate valve, made in accordance with BS 5150 from either grey cast iron or spheroidal graphite cast iron, that features flanges on both the inlet and outlet sides of the valve body. These body flanges are used to connect the valve to the pipeline system by means of bolts and gaskets, making installation and removal easier. This is particularly useful for maintenance and repair purposes. The flanges, furnished with raised face (RF) or flat face (FF), also provide a secure connection and ensure proper alignment of the valve with the piping system.

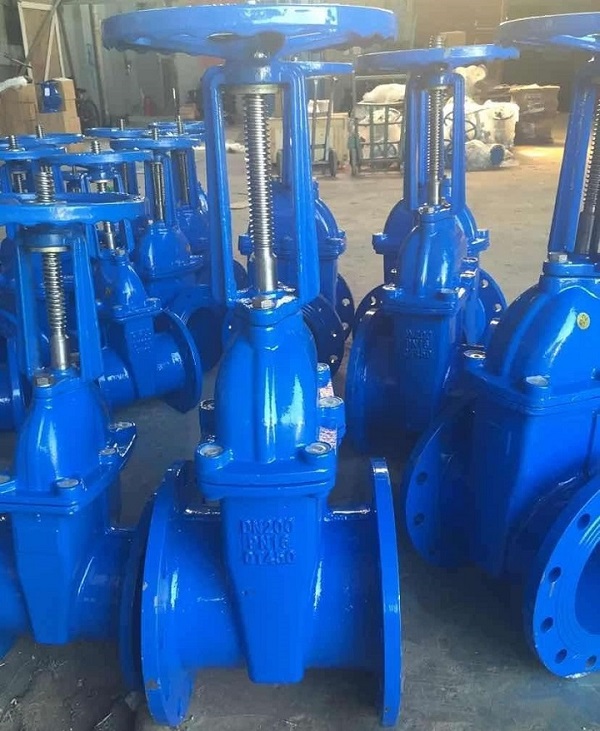

BS 5150 flanged gate valves, RES seated, rising stem.

BS 5150 flanged cast iron gate valves, resilient seated, rising stem, 8″ PN16, blue epoxy coating, supplied by SJZ Metalsin.

The BS 5150 flanged cast iron gate valve can be furnished with a rising or non-rising stem. Depending on the temperature, pressure, fluid compatibility, sealing requirements, and other working conditions, the flanged gate valves may be furnished with metal-to-metal seating or resilient (soft) seating.Usually, the closure member of the valve is a wedge-shaped gate instead of parallel gate. The purpose of the wedge shape is to introduce a high supplementary seating load that enables the valve to seal not only against high, but also low, fluid pressures. There are several variations of wedge design for BS 5150 cast iron gate valves: solid wedge, flexible wedge, split wedge or double disk.

Body Flange Drilling Dimensions

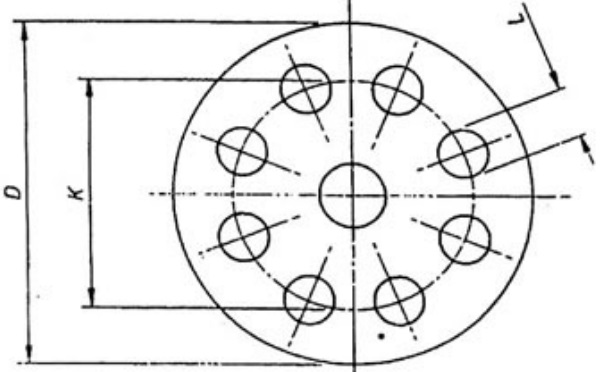

Drawing of BS 4504 flange drilling

The illustration of BS 4504 3.2 & BS 1560 3.2 flange drilling dimensions.

The body flange drilling dimensions for BS 5150 flanged cast iron gate valves with nominal pressures PN6, PN10, PN16, and PN25 shall comply with BS 4504 Section 3.2, available for sizes from DN10 to DN1000. The body flange drilling dimensions for BS 5150 flanged cast iron gate valves with nominal pressures Class 125 and Class 250 shall comply with BS 1560 Section 3.2, available for sizes from 1/2″ to 24″. These drilling dimensions for flanges are specified in terms of outside diameter of flange (D), bolt circle diameter (K), bolt hole diameter (L), and number of bolt holes (n). These dimensions provide a standardization for the installation of BS 5150 flanged gate valves in various piping systems, ensuring compatibility, sealing integrity & safety, and ease of assembly & maintenance.

SizeD
mm
K
mm
nL
mm
DN107550411
DN158055411
DN209065411
DN2510075411
DN3212090414
DN40130100414
DN50140110414
DN65160130414
DN80190150419
DN100210170419
DN125240200819
DN150265225819
DN200320280819
DN2503753351219
DN3004403951223
DN3504904451223
DN4005404951623
DN4505955501623
DN5006456002023
DN6007557052028
DN7008608102428
DN8009759202431
DN900107510202431
DN1000117511202831
*Drilling dimensions for BS 5150 flanged gate valves PN6.

SizeD
mm
K
mm
nL
mm
DN109060414
DN159565414
DN2010575414
DN2511585414
DN32140100419
DN40150110419
DN50165125419
DN65185145419
DN80200160819
DN100220180819
DN125250210819
DN150285240823
DN200340295823
DN2503953501223
DN3004454001223
DN3505054601623
DN4005655151628
DN4506155652028
DN5006706202028
DN6007807252031
DN7008958402431
DN80010159502434
DN900111510502834
DN1000123011602837
*Drilling dimensions for BS 5150 flanged gate valves PN10.

SizeD
mm
K
mm
nL
mm
DN109060414
DN159565414
DN2010575414
DN2511585414
DN32140100419
DN40150110419
DN50165125419
DN65185145419
DN80200160819
DN100220180819
DN125250210819
DN150285240823
DN2003402951223
DN2504053551228
DN3004604101228
DN3505204701628
DN4005805251631
DN4506405852031
DN5007156502034
DN6008407702037
DN7009108402437
DN80010259502440
DN900112510502840
DN1000125511702843
*Drilling dimensions for BS 5150 flanged gate valves PN16.

SizeD
mm
K
mm
nL
mm
DN109060414
DN159565414
DN2010575414
DN2511585414
DN32140100419
DN40150110419
DN50165125419
DN65185145819
DN80200160819
DN100235190823
DN125270220828
DN150300250828
DN2003603101228
DN2504253701231
DN3004854301631
DN3505554901634
DN4006205501637
DN4506706002037
DN5007306602037
DN6008457702040
DN7009608752443
DN80010859902449
DN900118510902849
DN1000132012102856
*Drilling dimensions for BS 5150 flanged gate valves PN25.

SizeDKnL
DN158960.3415.9
DN209869.8415.9
DN2510879.4415.9
DN3211788.9415.9
DN4012798.4415.9
DN50152120.6419.0
DN65178139.7419.0
DN80190152.4419.0
DN100229190.5819.0
DN125254215.9822.2
DN150279241.3822.2
DN200343298.4822.2
DN250406362.01225.4
DN300483431.81225.4
DN350533476.21228.6
DN400597539.81628.6
DN450635577.81631.8
DN500698635.02031.8
DN600813749.32034.9
*Drilling dimensions for BS 5150 flanged gate valves Class 125 & Class 150.
