Ductile Iron Rigid Couplings

At Metalsin, we supply ductile iron rigid couplings for piping systems to create secure, non-flexible connections between grooved-end pipes and fittings. These couplings are distinct from flexible variants, as they do not accommodate misalignment or movement, making them ideal for systems requiring rigid, high-strength joints.

Key Components

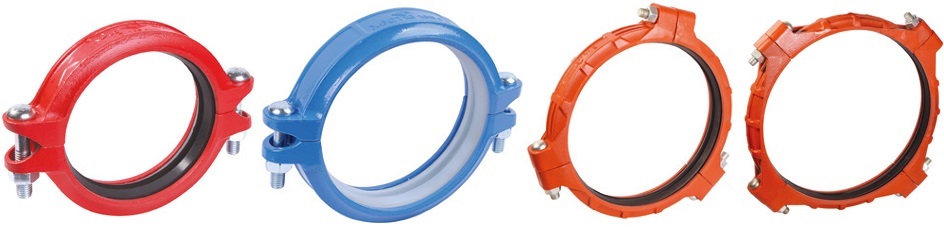

Ductile iron rigid couplings in various sizes and coatings.

Ductile iron rigid couplings for grooved pipes and fittings are designed to create secure, permanent connections in piping systems by combining several essential components. The coupling housing, typically split into two halves for easy assembly, is made of high-strength ductile iron and serves as the structural framework that encloses and clamps the grooved pipe ends. Inside the housing, an elastomeric gasket—often made from EPDM, nitrile rubber, or similar materials—is compressed to form a leak-proof seal between the pipes. High-quality bolts and nuts, manufactured from carbon, stainless, or galvanized steel, fasten the housing halves together, ensuring uniform pressure on the gasket and pipes. The inner surface of the housing features a raised shoulder or groove that mechanically interlocks with the pre-formed grooves on the pipes to prevent axial movement and maintain alignment, sometimes supplemented by lugs or keys for proper orientation during installation. An optional anti-corrosion coating, such as epoxy or zinc, can also be applied to protect the ductile iron from harsh environments.

Rigid Couplings vs. Flexible Couplings

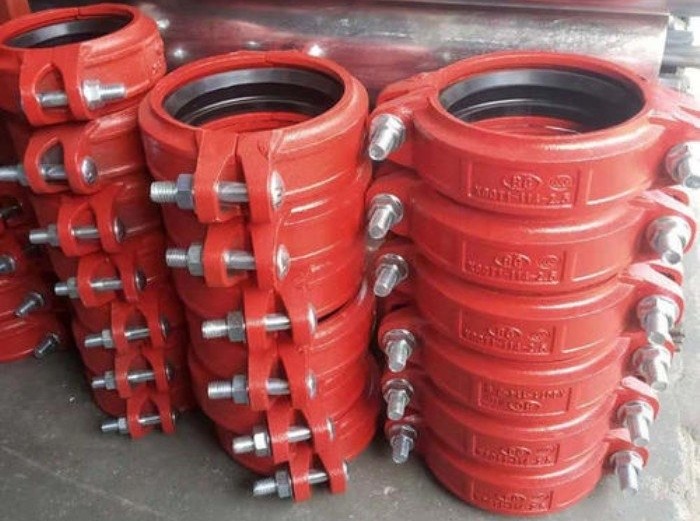

Ductile iron rigid couplings produced in our workshop in Hebei Province.

Ductile iron rigid couplings form permanent, static joints that require precise alignment and transmit torque with high torsional stiffness and minimal backlash, making them ideal for high-pressure, steady-load environments; however, they offer no tolerance for misalignment and demand careful installation and maintenance. In contrast, flexible couplings accommodate slight angular, axial, or parallel misalignments, absorb thermal expansion and vibrations, and ease installation in dynamic systems like HVAC or seismic-protected applications, though they may introduce minimal torsional deflection and play, and are generally more complex and costly to maintain.

Applications & Specifications

Ductile iron rigid couplings are extensively used across various critical applications: in fire protection systems, they form UL/FM-certified grooved piping networks for water supply and sprinkler systems where rigidity and leak-proof performance are paramount; in industrial piping, they provide robust, corrosion-resistant joints for chemical plants, oil refineries, and HVAC systems; and in water and wastewater infrastructure, epoxy-coated couplings prevent corrosion in drainage and sewage pipelines. These couplings also adhere to strict certifications and standards, including UL/FM certification to ensure fire safety and performance, as well as ISO 9001 compliance for quality management and consistency in production processes.

Click to view the specifications (sizes, drawings, dimensions) for ductile iron standard rigid couplings and light-duty rigid couplings & angle pad couplings.
