DIN 3352 F4 Non-Rising Stem Gate Valves

March 21, 2025

Design Features

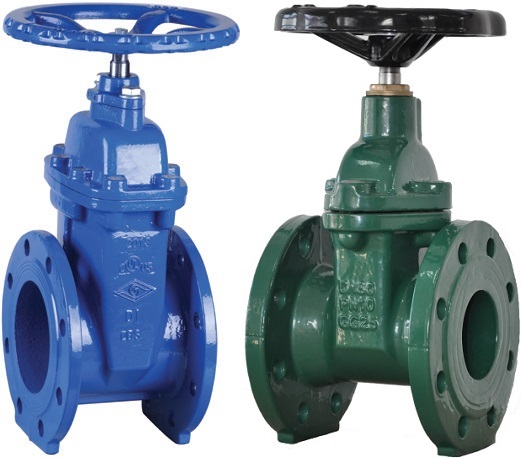

DIN 3352 F4 NRS gate valves.

DIN 3352 F4 ductile iron non-rising stem gate valves, double flanged & resilient seated, PN 10 / PN 16.

At Metalsin, we supply DIN 3352 F4 ductile iron resilient seated non-rising stem (NRS) gate valves for waterworks. These valves feature:

  • DIN 3352 F4: These gate valves are designed and manufactured in compliance with German standard DIN 3352. The face-to-face dimensions shall be made in accordance with series F4 of DIN 3202-1, which is equivalent to series 14 of EN 558-1.
  • Non-Rising Stem: The NRS design means that the stem does not move vertically during the valve’s operation. Instead, it rotates in place to raise or lower the gate. This design minimizes the space required above the valve and enhances sealing reliability. Compared to the rising stem counterpart, the key advantage of the NRS design is its compact design — it requires less vertical space, making it ideal for installations in confined areas.
  • Flanged Ends: Double flanged ends are cast integrally with the valve body, with dimensions according to DIN 2501 or EN 1092-2 PN 10 & PN16.
  • Resilient Seated: The disc is fully coated by vulcanized EPDM to form a resilient and flexible seating design.

Technical Specifications

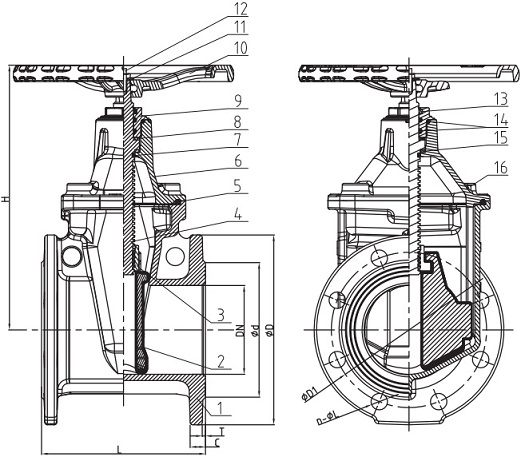

Drawing of DIN 3352 F4 NRS gate valve.

Typical drawing of ductile iron NRS gate valve made to DIN 3352 Series F4, resilient seated & double flanged, handwheel operated.

Part No.Part NameMaterial Spec.
1Valve BodyEN-GJS-450-10
GGG 40
2DiscEN-GJS-450-10 + EPDM
GGG 40 + EPDM
3Wedge NutBrass HPb59-1
4StemSS 304, SS 316
SS 420, SS 431
5Bonnet GasketEPDM, NBR
6BonnetEN-GJS-450-10
GGG 40
7O-RingNBR, EPDM
8WasherPTFE
9LocknutBrass HPb59-1
10HandwheelEN-GJS-450-10
GGG 40
11Flat WasherC.S. + Zinc
12BoltC.S. + Zinc
13Ring WiperEPDM, NBR
14O-RingNBR, EPDM
15WasherBrass HPb59-1
16BoltC.S. + Zinc
*Material specification for each valve part.

DNL
mm
H
mm
D
mm
D1
mm
40140218150110
50150218165125
65170232185145
80180281200160
100190316220180
125200377250210
150210420285240
200
PN10
230490340295
200
PN16
230490340295
250
PN10
250628405350
250
PN16
250628405355
300
PN10
270723460400
300
PN16
270723460410
350
PN10
290917520460
350
PN16
290917520470
400
PN10
310917580515
400
PN16
310917580525
450
PN10
3301108640565
450
PN16
3301108640585
500
PN10
3501130715620
500
PN16
3501130715650
600
PN10
3901311840725
600
PN16
3901311840770
*Dimensions for DIN 3352 F4 NRS gate valves, PN 10 & PN 16: L, H, D, D1 (Dimensions are identical for sizes DN40 ~ DN150 of PN 10 & PN 16).

DNd
mm
C
mm
T
mm
n-ΦL
mm
40841934-Φ19
50991934-Φ19
651181934-Φ19
801321938-Φ19
1001561938-Φ19
1251841938-Φ19
1502111938-Φ23
200
PN10
2662038-Φ23
200
PN16
26620312-Φ23
250
PN10
31922312-Φ23
250
PN16
31922312-Φ28
300
PN10
37024.5412-Φ23
300
PN16
37024.5412-Φ28
350
PN10
42926.5416-Φ23
350
PN16
42926.5416-Φ28
400
PN 10
48028416-Φ28
400
PN 16
48028416-Φ31
450
PN10
53030420-Φ28
450
PN16
54830420-Φ31
500
PN10
58231.5420-Φ28
500
PN16
60931.5420-Φ34
600
PN10
68236520-Φ31
600
PN16
72036520-Φ37
*Dimensions for DIN 3352 F4 NRS gate valves, PN 10 & PN 16: d, C, T, n-ΦL (Dimensions are identical for sizes DN40 ~ DN150 of PN 10 & PN 16).
