DIN 3352 F5 Ductile Iron NRS Gate Valves

March 21, 2025

Design Features

At Metalsin, we supply DIN 3352 F5 ductile iron non-rising stem (NRS) gate valves, which are furnished with resilient seat and flanged ends. DINF 3352 F5 denotes that the face-to-face dimensions are in accordance with Series F5 of DIN 3202-1, which is equivalent to Series 15 of EN 558-1. Both exterior and interior surfaces of the valves are FBE coated in accordance with AWWA C550, suitable for water supply services at the temperatures ranging from -10°C to 90°C. The flanged ends shall be furnished in accordance with DIN 2501-1 & EN 1092-2 PN 10 and PN 16.

DIN 3352 F5 NRS gate valves.

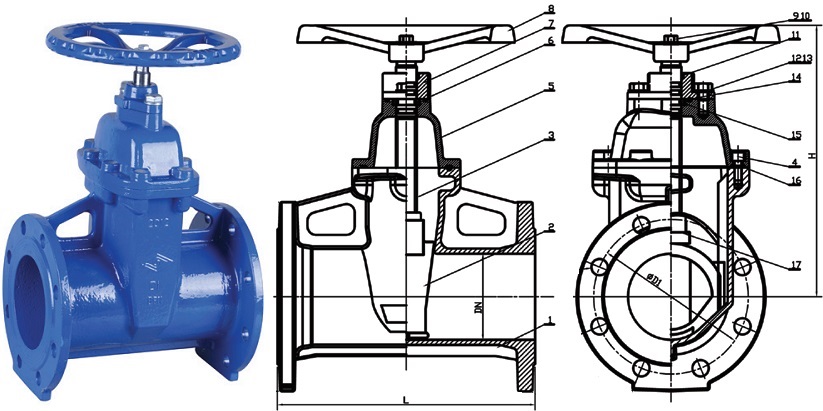

Ductile iron NRS resilient seated gate valves made to DIN 3352 F5: product picture & drawing.

The most notable feature of these valves is that, compared with DIN 3352 Series F4, they have much longer face-to-face dimensions, which enhance structural integrity by evenly distributing stress, improve sealing and alignment for leak-free operation — especially when thicker gaskets or linings are used — and offer additional space for enhanced sealing features, while also providing greater installation flexibility to accommodate minor piping misalignments, ultimately contributing to improved performance and longer service life.

Materials & Dimensions

Part No.Part NameMaterial Spec.
1Valve BodyEN-GJS-450-10
GGG 40
2DiscEN-GJS-450-10 + EPDM
GGG 40 + EPDM
3StemSS 304, SS 316
SS 420, SS 431
4NutC.S. + Zinc
SS 304, SS 316
5BonnetEN-GJS-450-10
GGG 40
6O-RingNBR, EPDM
7GlandEN-GJS-450-10
GGG 40
8HandwheelEN-GJS-450-10
GGG 40
9BoltC.S. + Zinc
SS 304, SS 316
10Flat WasherC.S. + Zinc
SS 304, SS 316
11Ring WiperEPDM, NBR
12BoltC.S. + Zinc
SS 304, SS 316
13Flat WasherC.S. + Zinc
SS 304, SS 316
14O-RingNBR, EPDM
15Thrust WasherBrass HPb59-1
16Bonnet GasketEPDM, NBR
17Wedge NutBrass HPb59-1
*Material specification for each valve part.

DNL
mm
H
mm
40240184
50250195
65270222
80280251
100300282
125325340
150350379
200400461
250450559
300500639
350550762
400600836
450650957
5007001036
6008001188
*Basic structural dimensions for DIN 3352 F5 non-rising stem flanged gate valves PN 10 & PN 16, sizes 1-1/2″~24″.
