EN 12334 Resilient Seated Swing Check Valves

At Metalsin, we supply resilient seated swing check valves made to EN 12334 for waterworks applications. Resilient seated swing check valves are engineered to prevent backflow in piping systems, ensuring unidirectional fluid flow. Unlike metal-seated swing check valves, which rely on metal-to-metal contact for sealing, resilient seated valves utilize elastomeric materials to achieve a tight seal.

Resilient Seated Design

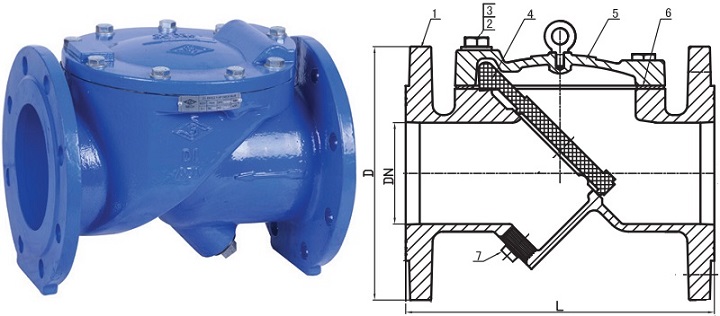

Typical photo and drawing of EN 12334 resilient seated swing check valve, double flanged.

The disc of the swing check valve is typically made of ductile iron and fully encapsulated & vulcanized by EPDM rubber, creating a resilient seal that effectively prevents backflow. These valves consist of only one moving component—the disc—minimizing maintenance requirements and reducing the risk of component wear. The use of ductile iron for the body and bonnet, combined with elastomeric seating, results in a lighter and more compact valve design. Resilient seated swing check valves are designed to seal drop-tight at pressures above 5 psig, ensuring zero leakage under normal operating conditions.

Technical Specification

EN 12334 resilient seated swing check valves: flanges made to EN 1092-2; working pressure: PN10/PN16; working temperature: -10°C~120°C; interior & exterior electrostatic powder epoxy coating according to  AWWA C550; pressure tested to EN 12266-1.
