Y Strainers with Grooved Ends

April 5, 2025

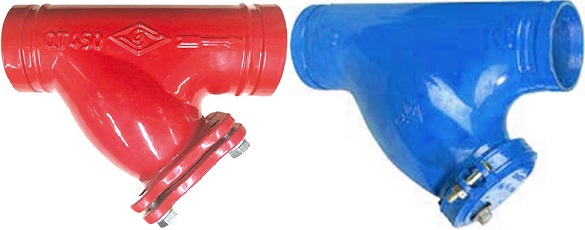

Grooved Y strainers.

Ductile iron grooved Y strainers supplied by Metalsin for fire protection (red coating) and waterworks (blue coating), respectively.

Ductile iron Y strainers with grooved ends deliver a robust and flexible solution for fire protection and waterworks piping systems by using precisely machined grooves that meet AWWA C606 and ISO 6182 standards, enabling swift and secure coupling with industry-standard fittings. Grooved end connections provide a faster, more reliable alternative to flanged connections by eliminating the need for heavy bolting and gasket alignment, making them more suitable for piping connections of 8″ or smaller. This design not only produces leak-proof, durable joints that reduce installation time and maintenance challenges but also safeguards downstream equipment in high-performance applications like fire protection. Ultimately, the combination of rapid installation, reliable sealing, and enhanced durability helps maintain system integrity, minimize downtime, and lower overall lifecycle costs.

Technical Specifications

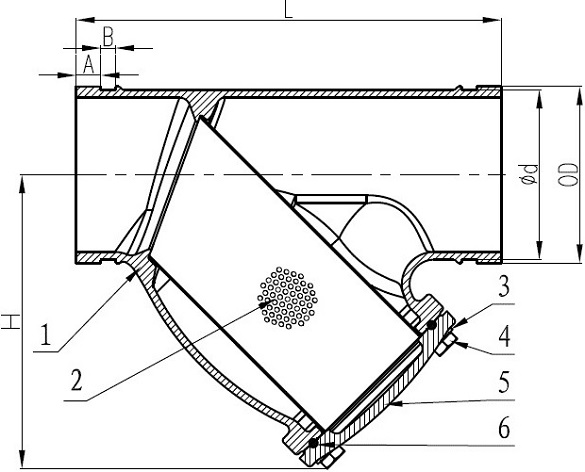

Drawing of grooved Y strainers.

Typical drawing of the Y strainer with grooved ends.

Part No.Part NameMaterial Spec.
1BodyASTM A536 65-45-12
EN-GJS-450-10
2ScreenSS 304, SS 316
3Flat WasherC.S. + Zinc, SS 304
4BoltC.S. + Zinc, SS 304
5CapASTM A536 65-45-12
EN-GJS-450-10
6O-RingEPDM
*Material for each strainer part.

The grooved ends of the ductile iron Y strainer shall be furnished in accordance with AWWA C606 or ISO 6182. Nominal working pressures: PN 10, PN 16; 200 psi, 250 psi, 300 psi. Working temperatures: 0°C~80°C. Both interior and exterior surfaces of the grooved Y strainer shall be provided with epoxy resin coating in RAL 3000 or RAL 5005.
